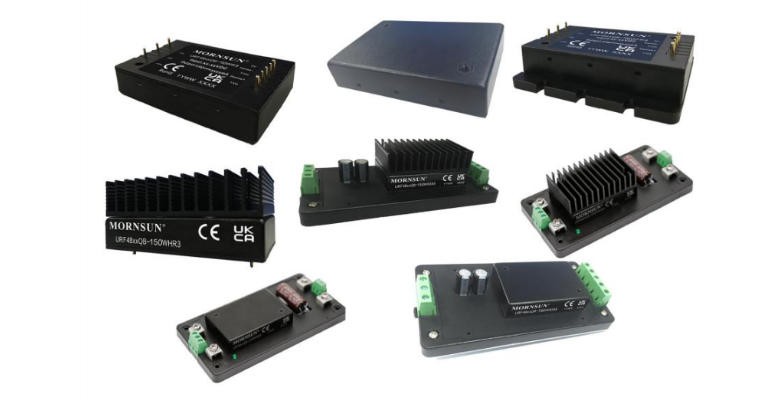

URF4815QB-150WR3 1/4 brick 150W isolated DC-DC converter

URF48_QB-150W(F/H)R3(A5/A6)series are isolated 150W DC-DC products with 4:1 input voltage. They feature efficiency up to 91%, 2250VDC input to output isolation, operating ambient temperature of -40℃ to +85℃, input under-voltage, output short circuit, over-current, over–voltage, over-temperature protection. The products meet CLASS A of CISPR32/EN55032 EMI standards by adding the recommended external components and they are widely used in applications such as battery powered systems, industrial controls, electricity, instrumentation, railway, communication and intelligent robotic.

FEATURES  Ultra-wide 4:1 input voltage range  High efficiency up to 91%  I/O isolation test voltage 2.25k VDC  Operating ambient temperature range: -40℃ to +85℃  Input under-voltage protection, output short-circuit, over-current, over-voltage, over-temperature protection  Five-sided metal shielded package  Industry standard ¼-Brick package and pin-out
