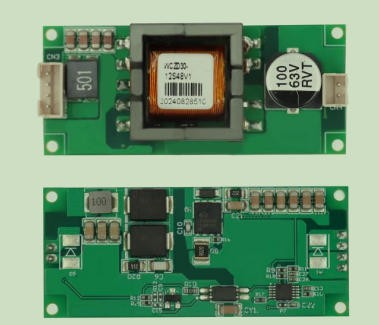

WInchen WCZD30-12S48V1 DC to DC boost up 12V to 48V 30W converter power module

Product characteristics  Module Configuration Soft Start  Maximum output power up to 30W  Rated output: 48V-52V/0.625A  The output ripple is less than 250 mV  Conversion efficiency can be as high as 90% (input: 12V output:48V@0.625A)  Good protection circuit with input undervoltage, output overcurrent, etc  PCBA standarsize：56.0*24.0*14.2mm  High reliability: The design meets the 5 million hour average failure interval  Isolation voltage up to 1500VDC

The WCZD30-12S48V1 module is a small power module developed by our company to meet the needs of domestic communication enterprises. Input voltage is 12V, output 48V-52V&0.625A  The WCZD30-12S48V1 module uses industry-wide packaging and pin definitions, with a focus on providing customers with a high cost-performance ratio  The module works specifically for low input voltage and low ripple noise output. DC/DC converters also have built-in output overload, output short circuit, and under voltage protection
