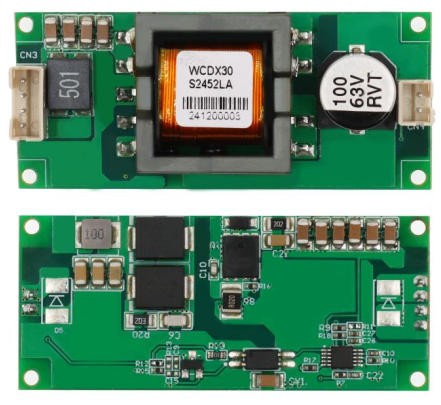

WInchen WCDX30S2452LA DC to DC boost up 24V to 52V 30W converter power module

Ø High efficiency and low output ripple noise

Ø ```Module Configuration Soft Start```

Ø The maximum output power can reach 30W

Ø Rated output: 52V/0.6A

Ø The output ripple is less than 250 mV

Ø The efficiency reaches up to 90%

Ø Output overcurrent and short-circuit protection

Ø Isolation voltage up to 1500VDC

Ø Operating humidity: -40 to 85°C

Ø PCBA standard dimensions: 56*24*14.4mm

High Reliability: Designed to meet an average fault interval of 1 million hours

Item

Condition

Min

Typical

Max

Unit

Output Power

0

30

W

Output voltage accuracy

±1

±2

%

Linear voltage regulation rate

Full load, input voltage changes from low to high

±0.2

±0.5

Load regulation rate

Under nominal input, the load varies from 10% to 100%

±0.5

±1

Temperature drift coefficient

Under rated load

±0.03

%/℃

Ripple&Noise

Bandwidth of 20MHz, using parallel line method

250

mVp-p

switching frequency

Rated input voltage

120

150

KHz

Output short circuit protection

Continuous short circuit protection (self recovery)

Input filter type

π - type filter

hot-swapping

No
