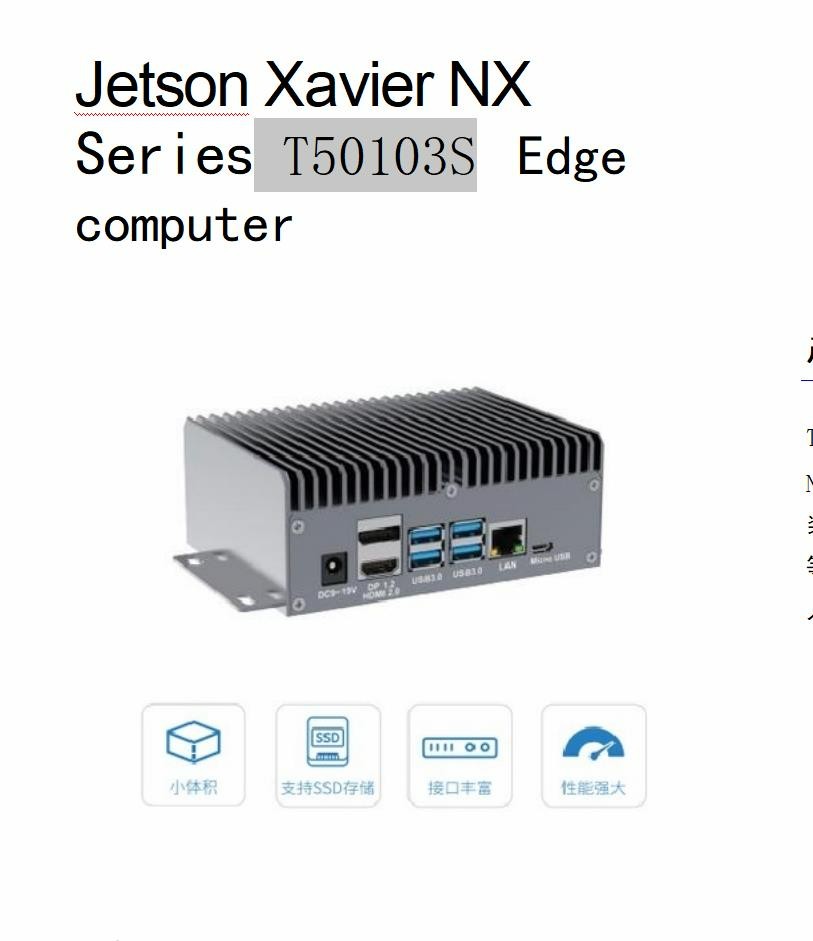

NVIDIA Jetson Xavier NX Series T50103S Edge computer

systems

Al Platform

Jetson Xavier NX

AI computing power

21 TOPS

GPU

384-core NVIDIA VoltaTWarchitecture GPU with 48 Tensor Cores

CPU

6-core NVIDIA Carmel ArmV8.264-bit CPU 6MB L2+4MB L3

video encoding

2x4K60(H.265)4x4K30(H.265)

10x1080p60(H.265)22×1080p30(H.265)

video decoding

2x8K30(H.265)6x4K60(H.265)

12x4K30(H.265)22x1080p60(H.265)44x1080p30(H.265)

RAM

8GB 128-bit LPDDR4/16GB 128-bit LPDDR459.7 GB/秒

Storage/Expansion

16GB eMMC5.1

wired network

Interface

1 x RJ45 Gigabit Ethernet port

wireless network

WIFI

2.4GHz/5GHz dual-band WiFi (optional)

4G/5G

/

GNSS

/

Others

1x TF Card

multimedia

demonstrate

1xHDMI,1xDP

audio frequency

/

1/0

USB

4xUSB3.0 Type-A,1xUSB Micro OTG

serial port

1x UART(TTL)

CAN

/

Multi-function interface

40 pins (UART, SPI, I2S, I2C, PWM, GPIO), a 12-pin control signal interface

Interface

M.2 KEY E

WiFi

M.2   KEYM

1x2280 PCIE SSD(optional)

Others

RTC

/

synchronization system

/

GMSL Camera Interface

/

Others

Power Input

9-19V

Power connector

DC Interface

Buttons/Indicators

/

physical parameter

Specification/Size

122mm×89mm×44.8mm

setting

operating temperature

-20℃ TO 60℃

Operating humidity

5%~95%,without condensation

Heat dissipation method

Passive heat dissipation
