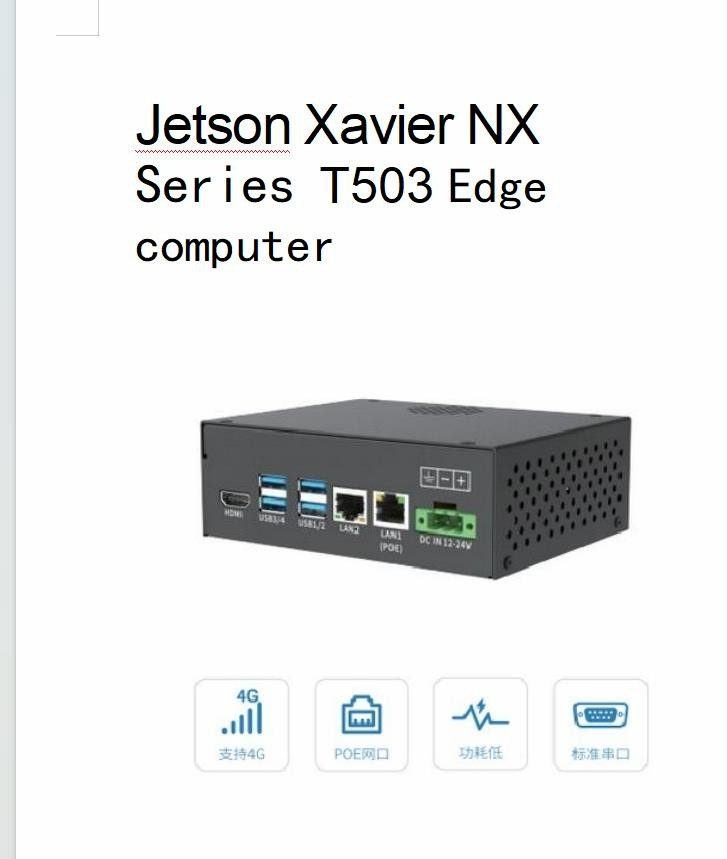

NVIDIA Jetson Xavier NX Series T503 Edge computer

systems

Al Platform

Jetson Xavier NX

AI computing power

21 TOPS

GPU

384-core NVIDIA Volta"architecture GPU with 48 Tensor Cores

CPU

6-core NVIDIA Carmel ArmV8.264-bit CPU 6MB L2+4MB L3

video encoding

2x4K60(H.265)4x4K30(H.265)

10x1080p60(H.265)22×1080p30(H.265)

video decoding

2x8K30(H.265)6x4K60(H.265)

12x4K30(H.265)22x1080p60(H.265)44x1080p30(H.265)

RAM

8GB 128-bit LPDDR4/16 GB 128-bit LPDDR459.7GB/Second

Storage/Expansion

16GB eMMC5.1

wired network

Interface

1 x RJ45 Gigabit Ethernet port, and 1 x RJ45 Gigabit Ethernet port supports POE (af standard) (standard configuration)

wireless network

WIFI

2.4GHz/5GHz dual-band WiFi (optional)

4G/5G

4G full-network connectivity (optional)

GNSS

/

Others

1x SIM Card

multimedia

demonstrate

1xHDMI

audio frequency

/

I/O

USB

4x USB 3.0/2.0 TYPEA,1xMicro OTG

serial port

1xRS232,1xRS485

CAN

/

Multi-function interface

/

Interface

M.2 KEY E

WiFi

M.2 KEY M

1x2280 PCIE SSD(optional)

Others

RTC

1x RTC

synchronization system

/

GMSL Camera Interface

/

Others

Power Input

9-19V

Power connector

3-pin Phoenix terminal

Buttons/Indicators

Recover\Rest Two buttons and two indicator lights

physical parameter

Specification/Size

115mm×135mm×48mm

setting

operating temperature

-20℃-60℃

Operating humidity

5%~95%,without condensation

Heat dissipation method

Cooling by a fan
