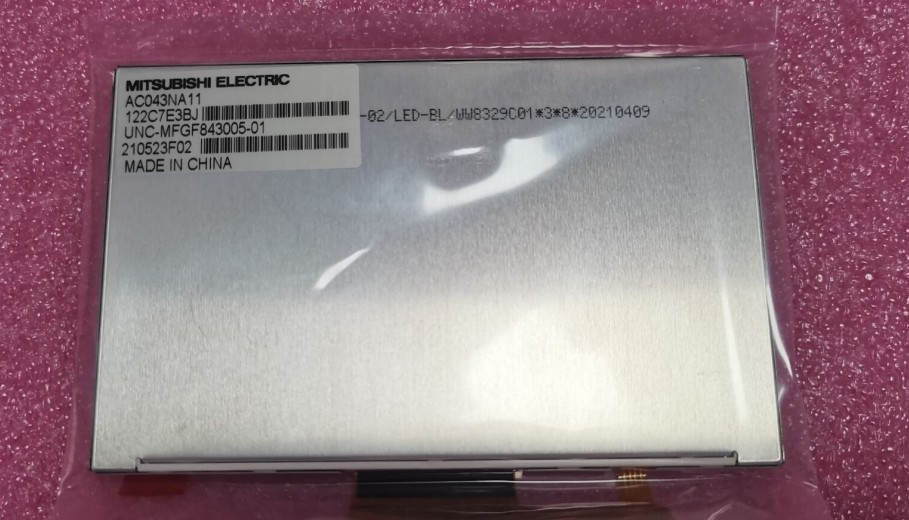

Mitsubishi AC043NA11 4.3 inch TFT-LCD display panel

Panel brand Mitsubishi panel model AC043NA11

Panel size 4.3 inches, panel type a-Si TFT-LCD, LCD module

Resolution 480 (RGB) x 272 [WQVGA] 128PPI Pixel arrangement RGB vertical stripe

Display area 95.04 (W) x 53.856 (H) mm

External dimensions 105.5 (W) x 67.2 (H) x 5 (D) mm

Surface treatment matte surface, Hard coating (2H)

Display brightness 1000 cd/m ²  (Typ.) Contrast 1000:1 (Typ.) (Transmission)

Response time 12/12 (Typ.) (Tr/Td) ms

Visual angle 85/85/85/85 (Typ.) (CR ≥ 10) Display mode SWV, constant black display, transparent

Supports color 16.7M, 47% NTSC light source type WLED, 50K hours, no driver

Panel weight 55.0g (Typ.)

Frame rate 60Hz touch technology without touch

Interface type CMOS (1 ch, 8-bit), 45 pins FPC

Voltage supply 3.3V (Typ.)

Application environment working temperature: -30~80 ° C Storage temperature: -30~80 ° C
