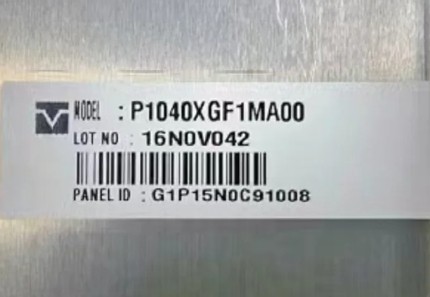

Tianma P1040XGF1MA00 TFT-LCD display panel Tianma P1040XGF1MA00 TFT-LCD display panel Tianma P1040XGF1MA00 TFT-LCD display panel

  • Brand

  • TIANMA

  • Model P/N

  • P1040XGF1MA00

  • Diagonal Size

  • 10.4"

  • Panel Type

  • a-Si TFT-LCD, LCM

  • Resolution

  • 1024(RGB)×768, XGA  123PPI

  • Pixel Format

  • RGB Vertical Stripe

  • Active Area

  • 210.432(W)×157.824(H) mm

  • Bezel Opening

  • 213.432(W)×160.82(H) mm

    Brand TIANMA Model Name P1040XGF1MA00

    Screen size 10.4 "Screen type LCD module, a-Si TFT-LCD

    Resolution 1024 (RGB) × 768 [XGA] 123PPI Pixel Configuration RGB Vertical Bar

    Display size 210.432 ×  157.824 mm (H × V) Appearance size 230 ×  one hundred and eighty point two ×  9.8 mm (H × V × D)

    Visual size 213.432 ×  160.82 mm (H × V) Surface treatment mist surface

    Brightness (cd/m) ²) 1300 (Typ.) Contrast 1000: 1 (Typ.) [Transmission]

    Best angle full angle optical mode SFT, constant black display, transmissive

    Visual angle 85/85/85/85 (Typ.) (CR ≥ 10) Left/Right/Up/Down response speed 35/50 (Typ./Max.) (Tr+Td) ms

    Color quantity 262K/16.7M, 50% NTSC backlight type 6S4P WLED, 100K hours, no driver

    Screen weight TBD is suitable for industrial outdoor high brightness

    Refresh frequency 60Hz, touch function without touch

    Signal system LVDS (1 ch, 6/8-bit), terminals, 20 pins

    Supply voltage 3.3V (Typ.)

    Maximum rated storage temperature: -40~85 ° C Working temperature: -30~80 ° C; Vibration resistance: 6.8G (66.64 m/s) ²)
