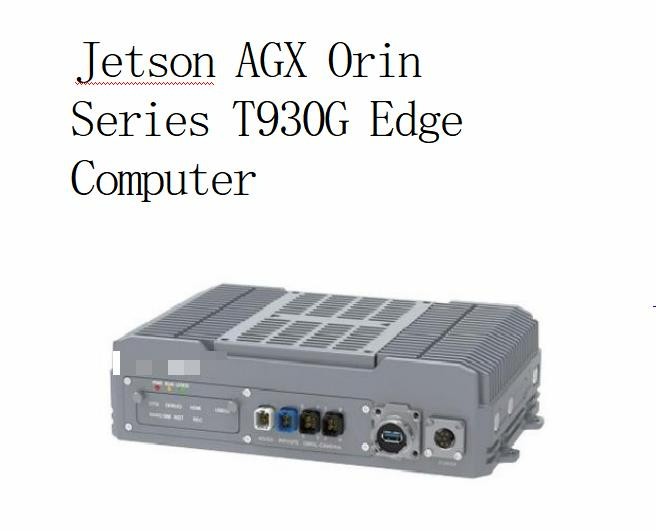

NVIDIA Jetson AGX Orin Series T930G Edge Computer

systems

Al Platform

Jetson AGX Orin

AI computing power

200 TOPS/275 TOPS

GPU

1792-core NVIDIAAmpere architecture GPU with 56 Tensor Cores/ 2048-core NVIDIAAmpere architecture GPU with 64 Tensor Cores

CPU

8-core ArmCortex-A78AE v8.264-bit CPU 2MB L2+4MB L3/

12-core Arm Cortex®-A78AE v8.264-bit CPU 3MB L2+6MB L3

video encoding

1x4K60(H.265)3x4K30(H.265)6x1080p60(H.265)12x1080p30(H.265)/ 2x4K60(H.265)4x4K30(H.265)8x1080p60(H.265)16x1080p30(H.265)

video decoding

1x8K30(H.265)2x4K60(H.265)4x4K30(H.265)9x1080p60(H.265)18x1080p30(H.265)/ 1x8K30(H.265)3x4K60(H.265)7x4K30(H.265)11x1080p60(H.265)22x1080p30(H.265)

RAM

32GB 256-bit LPDDR5204.8GB/s/64GB256-bit LPDDR5204.8GB/s

Storage/Expansion

64GB eMMC5.1

wired network

interface

1 x M12 10 Gigabit Ethernet port (supporting PTP time synchronization), 4 x M12 Gigabit Ethernet ports, with independent IP. LAN2 to LAN5 support POE (optional).

wireless network

WIFI

Dual-band WiFi of 2.4GHz/5GHz (optional))

4G/5G

Supports multi-mode (BD, GPS), and supports meter-level/centimeter-level/RTK/inertial navigation (optional)

GNSS

Supports multi-mode (BD, GPS), and supports meter-level/centimeter-level/RTK/inertial navigation (optional)

Others

1xSIM Card

multimedia

demonstrate

1xHDMI

audio frequency

1 x AUDIO OUT (3.5mm interface)

1/0

USB

2x USB3.0 Type-A,1x Type-COTG,1x Type-C Debug

serial port

1 x RS485 (can be switched to 1 x RS232 via software), 2 x RS232

CAN

2xCAN.2xSPI-CAN

Multi-function interface

2 x GPI + 2 x GPO (3.3V@1mA, isolated), 5 x 12V_GPO (12V@1mA)

接口

M.2 KEY E

WiFI

M.2 KEY M

1x2280 PCIE SSD

Others

RTC

lx RTC

synchronization system

Supports PTP, PPS output/input, and PWM output (optional)

GMSL Camera Interface

8x GMSL2

Others

Power Input

10V - 36V, supports ACC

Power connector

M16-6PIN navigation mark interface

Buttons/Indicators

Two buttons (Recover and Reset) and three indicator lights

physical parameter

Specification/Size

275mm×177.3mm×76.5mm

setting

operating temperature

Two buttons (Recover and Reset) and three indicator lights

Operating humidity

5% - 95%, without condensation

Heat dissipation method

Fan cooling
