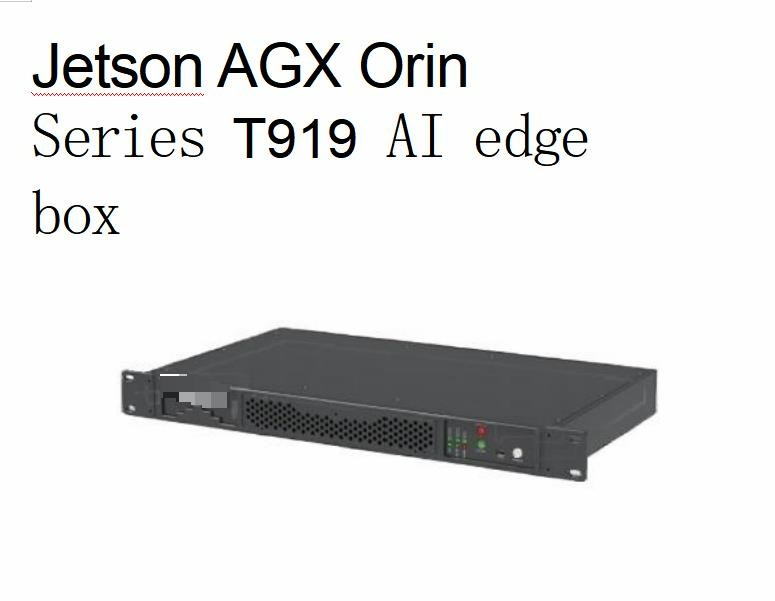

Jetson AGX Orin Series T919 AI edge box

systems

Al Platform

Jetson AGX Orin

AI computing power

200 TOPS/275 TOPS

GPU

1792-core NVIDIAAmpere architecture GPU with 56 Tensor Cores/ 2048-core NVIDIAAmpere architecture GPU with 64 Tensor Cores

CPU

8-core Arm②Cortex-A78AE v8.264-bit CPU 2MB L2+4MB L3/ 12-core ArmCortex®-A78AE v8.264-bit CPU 3MB L2+6MB L3

video encoding

1x4K60(H.265)3x4K30(H.265)6x1080p60(H.265)12x1080p30(H.265)/ 2x4K60(H.265)4x4K30(H.265)8x1080p60(H.265)16x1080p30(H.265)

video decoding

1x8K30(H.265)2x4K60(H.265)4x4K30(H.265)9x1080p60(H.265)18x1080p30(H.265)/ 1x8K30(H.265)3x4K60(H.265)7x4K30(H.265)11x1080p60(H.265)22x1080p30(H.265)

RAM

32GB 256-bit LPDDR5204.8GB/s/64GB256-bit LPDDR5204.8GB/s

Storage/Expansion

64GB eMMC5.1

wired network

interface

1 x RJ45 10 Gigabit Ethernet port, 1 x RJ45 Gigabit Ethernet port, with independent IP.

wireless network

WIFI

/

4G/5G

/

GNSS

/

Others

/

multimedia

demonstrate

1xHDMI

audio frequency

1XAUDIO OUT(3.5mm interface)

I/O

USB

2xUSB3.0 Type-A,1xType-COTG,IxType-C Debug

serial port

/

CAN

/

Multi-function interface

/

接口

M.2 KEY E

/

M.2 KEY M

2x2280 PCIE SSD,lx2242 PCIE SSD,2x SATA3硬盘(1x3.5或2x2.5寸)(optional)

Others

RTC

/

synchronization system

/

G MSL Camera Interface

/

Others

Power Input

Built-in power supply, externally connected to 220V.

Power connector

AC clover-leaf type socket.

Buttons/Indicators

Two buttons (Recover and Rst) and two indicator lights.

physical parameter

Specification/Size

483mm×249mm×44.4mm

setting

operating temperature

-20℃ to 60℃

Operating humidity

5% - 95%, without condensation.

Heat dissipation method

Fan cooling
