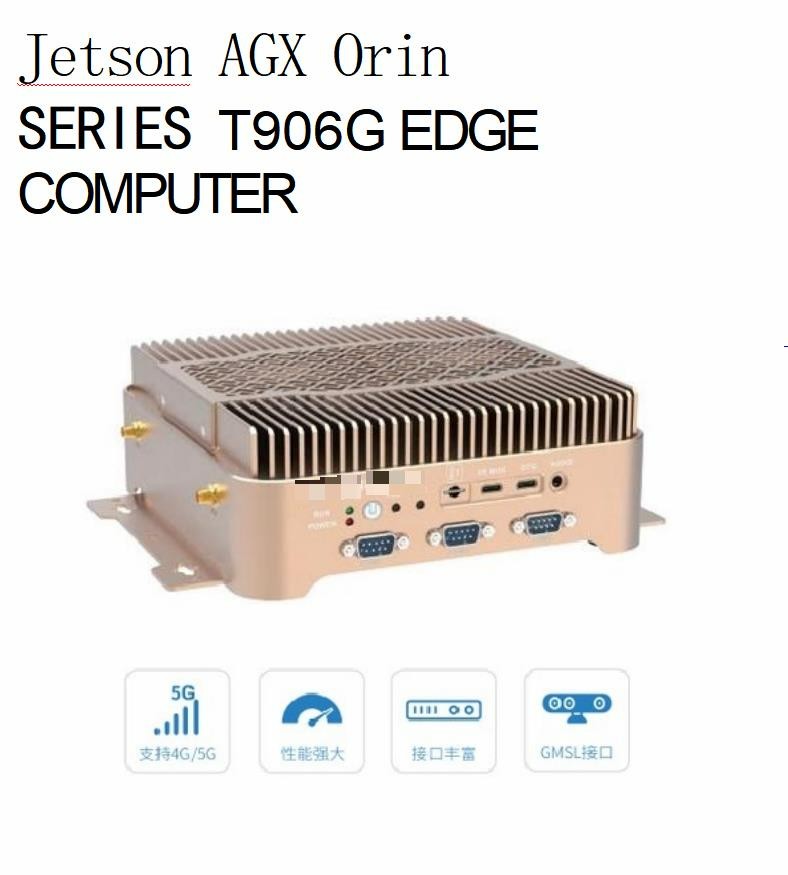

NVDIA Jetson AGX Orin SERIES T906G EDGE COMPUTER

systems

Al Platform

Jetson AGX Orin

AI computing power

200 TOPS/275 TOPS

GPU

1792-core NVIDIAAmpere architecture GPU with 56 Tensor Cores/ 2048-core NVIDIAAmpere architecture GPU with 64 Tensor Cores

CPU

8-core ArmCortex-A78AE v8.264-bit CPU 2MB L2+4MB L3/

12-core Arm Cortex®-A78AE v8.264-bit CPU3MB L2+6MB L3

video encoding

1x4K60(H.265)3x4K30(H.265)6x1080p60(H.265)12x1080p30(H.265)/ 2x4K60(H.265)4x4K30(H.265)8x1080p60(H.265)16x1080p30(H.265)

video decoding

1x8K30(H.265)2x4K60(H.265)4x4K30(H.265)9x1080p60(H.265)18x1080p30(H.265)/ 1x8K30(H.265)3x4K60(H.265)7x4K30(H.265)11x1080p60(H.265)22x1080p30(H.265)

RAM

32GB 256-bit LPDDR5204.8GB/s/64GB256-bit LPDDR5204.8GB/s

Storage/Expansion

64GB eMMC5.1

wired network

interface

1 x RJ45 10 Gigabit Ethernet port, 1 x RJ45 Gigabit Ethernet port, with independent IP.

wireless network

WIFI

Dual-band WiFi of 2.4GHz/5GHz (optional)

4G/5G

4G full-network communication/5G full-network communication (optional)

GNSS

Supports multi-mode (BD, GPS), and supports meter-level/centimeter-level/RTK/inertial navigation (optional). (To use the RTK function, an RTK antenna needs to be selected.)

Others

1 x SIM card

multimedia

demonstrate

1xHDMI

audio frequency

1 x AUDIO OUT (3.5mm interface)

1/0

USB

4xUSB3.0 Type-A,1x Type-COTG,1x Type-C Debug

serial port

3x RS232

CAN

2 x CAN, 1 x SPI-CAN (optional)

Multi-function interface

2 x GPIO (The maximum driving current is 1mA. One is at 3.3V TTL level and the other is at 1.8V TTL level)

interface

M.2 KEY E

WiFI

M.2 KEY M

1x2280 PCIE SSD

Others

RTC

lx RTC

synchronization system

/

GMSL Camera Interface

8xGMSL2

Others

Power Input

12-36V

Power connector

Vehicle-mounted ECU connector

Buttons/Indicators

Three buttons (Power, Recover, Rest) and two LED indicator lights

physical parameter

Specification/Size

196.7mm×196.7mm×74.0mm

setting

operating temperature

-20℃ to 60℃

Operating humidity

5% - 95%, without condensation

Heat dissipation method

Cooled by a fan
