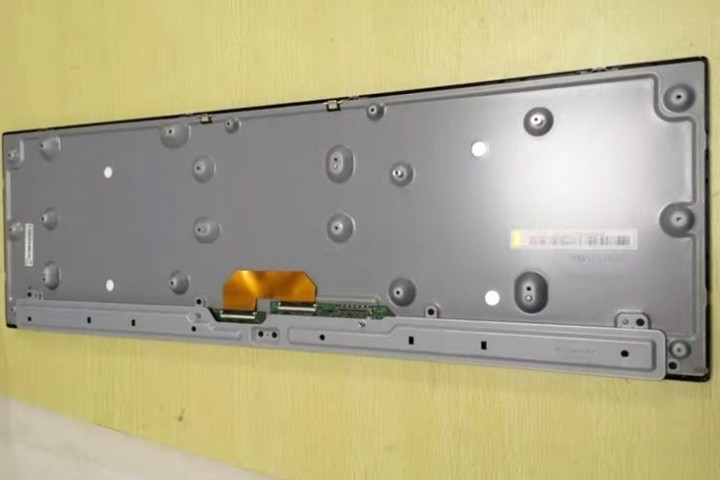

DV370FBM-N10 BOE bar type tft lcd display panel

1.2 Features 1.1 Introduction  LVDS interface with 2 pixel / clock  High-speed response   Low color shift image quality  8-bit color depth, display 16.7M colors  Wide viewing angle  DE (Data Enable) only mode  ADS technology is applied for high display quality  RoHS compliant

Parameter Specification Unit Remarks Active area 899.712(H) × 253.044(V) mm Number of pixels 1920(H) × 540(V) pixels Pixel pitch 156.2(H) × 468.6(V) μm Pixel arrangement Pixels RGB Vertical stripe Display colors 16.7M colors 8bits True Display mode Normally Black Dimensional outline 914.9(H) × 280.9(V) × 22.7 (Total)  mm Detail refer to drawing Weight 5100(Max) g Power Consumption 25.8w Watt Typ. Bezel width (L/R/U/D) 5.6/5.6/11.9/11.9 mm Surface Treatment Haze 25%, 3H Back-light E-LED Light bar Type LED life 50000 Display Direction landscape & Portrait
