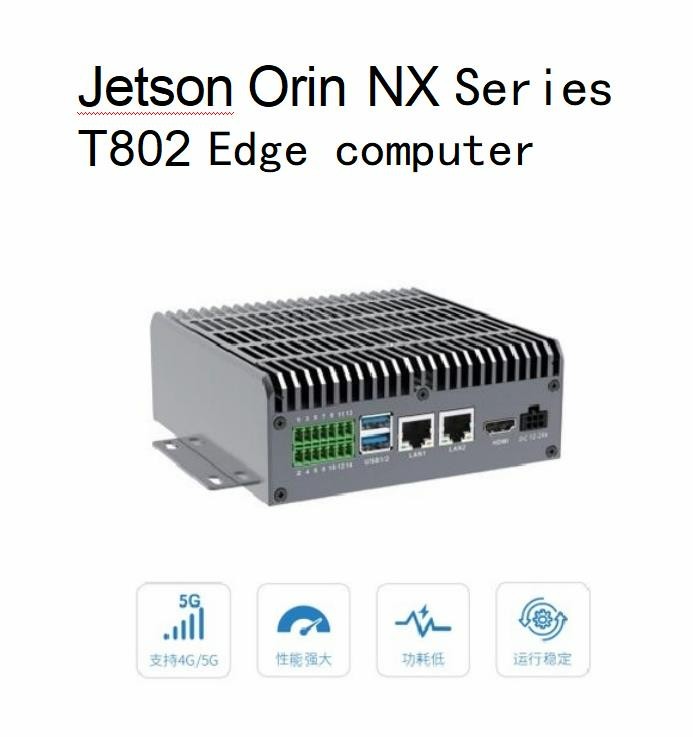

NVIDIA Jetson Orin NX Series T802 Edge computer

systems

Al Platform

Jetson Orin NX

AI computing power

70 TOPS/100 TOPS

GPU

1024-Core NVIDIAAmpere architecture GPU with 32 Tensor Core

CPU

6-core Arm®Cortex®-A78AE v8.264-bit CPU 1.5MB L2+4MB L3/ 8-core ArmCortex®-A78AE V8.264-bit CPU 2MB L2+4MB L3

video encoding

1x4K60(H.265)3x4K30(H.265)

6x1080p60(H.265)12x1080p30(H.265)

video decoding

lx8K30(H.265)2x4K60(H.265)

4x4K30(H.265)9x1080p60(H.265)18x1080p30(H.265)

RAM

8GB 128-bit LPDDR5102.4GB/s/16GB 128-bit LPDDR5102.4GB/s

Storage/Expansion

(Supports external NVMe)

wired network

Interface

2 x RJ45 Gigabit Ethernet ports, independent IP

wireless network

WIFI

2.4GHz/5GHz dual-band WiFi (optional)

4G/5G

4G full-network communication/5G full-network communication (optional)

GNSS

/

Others

1x SIM Card

multimedia

demonstrate

1xHDMI

audio frequency

/

I/O

USB

2xUSB3.0 Type-A,1xType-COTG

serial port

1xRS232,1xRS485

CAN

2xCAN

Multi-function interface

2xGPIO(IN)+2xGPIO(OUT)(3.3V@1mA,With Isolation)1xUART Debug

Interface

M.2 KEY E

WiFi

M.2 KEY M

1x2280 PCIE SSD

Others

RTC

1xRTC

synchronization system

/

G MSL Camera Interface

/

Others

Power Input

12V-24V

Power connector

MX3.0 terminal

Buttons/Indicators

Recover\Rest Two buttons named "Recover" and "Rest" and two indicator lights

physical parameter

Specification/Size

133mm×131mm×51mm

setting

operating temperature

-20℃ to 60℃

Operating humidity

5%~95%,without condensation

Heat dissipation method

Cooling by a fan
