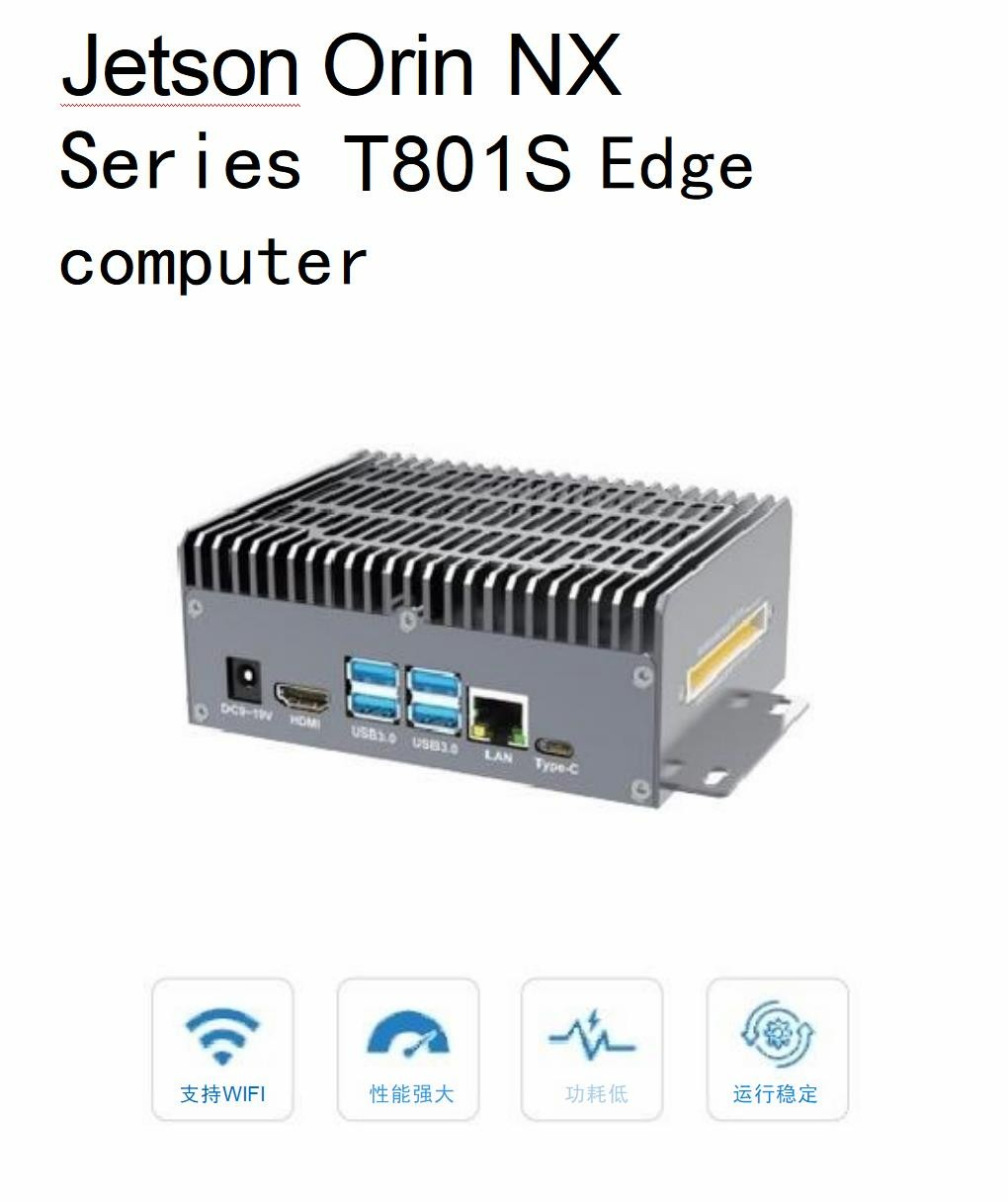

NVIDIA Jetson Orin NX Series T801S Edge computer

systems

Al Platform

Jetson Orin NX

AI computing power

70 TOPS/100 TOPS (Super mode：117TOPS/157TOPS)

GPU

1024-Core NVIDIAAmpere architecture GPU with 32 Tensor Core

CPU

6-core ArmCortexO-A78AE v8.264-bit CPU1.5MB L2+4MB L3/ 8-core ArmCortex"-A78AE V8.264-bit CPU 2MB L2+4MB L3

video encoding

1x4K60(H.265)3x4K30(H.265)

6x1080p60(H.265)12x1080p30(H.265)

video decoding

1x8K30(H.265)2x4K60(H.265)

4x4K30(H.265)9x1080p60(H.265)18x1080p30(H.265)

RAM

8GB 128-bit LPDDR5102.4GB/s/16GB 128-bit LPDDR5102.4GB/s

Storage/Expansion

(Supports external NVMe)

wired network

Interface

1 x RJ45 Gigabit Ethernet port

wireless network

WIFI

2.4GHz/5GHz dual-band WiFi (optional)

4G/5G

/

GNSS

/

Others

/

multimedia

demonstrate

1xHDMI

audio frequency

/

I/O

USB

4x USB3.2 Type-A,1xUSB3.2 Type-C

serial port

1xUART(TTL)

CAN

/

Multi-function interface

40 pins (UART, SPI, I2S, I2C, PWM, GPIO), a 12-pin control signal interface

Interface

M.2 KEY E

WiFi

M.2 KEY M

1x2280 PCIE SSD

Others

RTC

/

synchronization system

/

G MSL Camera Interface

/

Others

Power Input

9-19V

Power connector

DCInterface

Buttons/Indicators

/

physical parameter

Specification/Size

122mm×89mm×44.8mm

setting

operating temperature

-20℃ to 60℃

Operating humidity

5%~95%,without condensation

Heat dissipation method

Cooling by a fan
