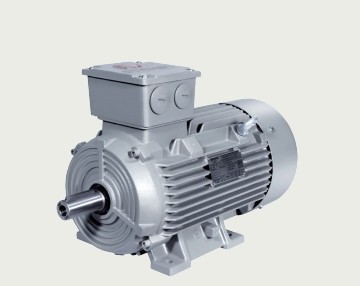

SIEMENS Low Voltage Dust Explosion-proof IE3 1MB0013Electrical motor

Rated output0.55 ~ 200 kW Frame size80 ~ 315 Voltage and FrequencySupport multiple voltage   and frequency Cooling methodIC411 Frame-proof markingEx tb IIIC T130 Db  Protect degreeIP65 Insulation class F Re-greasing deviceFS280 and above motor as standard Ambient temperature-20 ~ +40 Site altitude above see levelNot exceed 1000m


Application The explosion-proof motors are often used in the following  industries to prevent explosion hazards that result in serious  injury to persons and severe damage to property. • Chemical and petrochemical industry • Production of mineral oil and gas • Gas works • Gas supply companies • Petrol stations • Coking plants • Mills (e.g. corn, solids) • Sewage treatment plants • Wood processing (e.g. sawdust, tree resin) • Other industries subject to explosion hazards


INNOMOTICS series high efficiency dust explosion-proof  three-phase asynchronous motor is totally enclosed, selffan cooled high efficiency motor. The products meet the  requirements of the GB18613-2020 efficiency of energy  efficiency grade 3.  Dust explosion-proof motor can be used for food or forage  machine, wood machine, flour machine or storage, as well  metal, chemicals, synthetic resin, agricultural products and  all kinds of combustible dust places such as fiber, fuel and  so on. Detailed types of dust refer to "dust characteristics  example,"but this series motors are not suitable for gas or  underground coal mine with combustible dust and coal  mine ground device with electrical equipment, also can't  be used in place with explosive dust and spontaneous  combustion substances (e.g. phosphorus powder) but can  burn without oxygen from the atmosphere. INNOMOTICS dust explosion-proof motor's performance  fulfill GB/T 3836.1-2021Explosive atmospheres-Part I:  Equipment General requirementsand GB/T 3836.31-2021 Explosive atmospheres-Part 31: Equipment dust ignition  protection by enclosure "t", suitable for explosive dust  environment Zone 21 or zone 22
