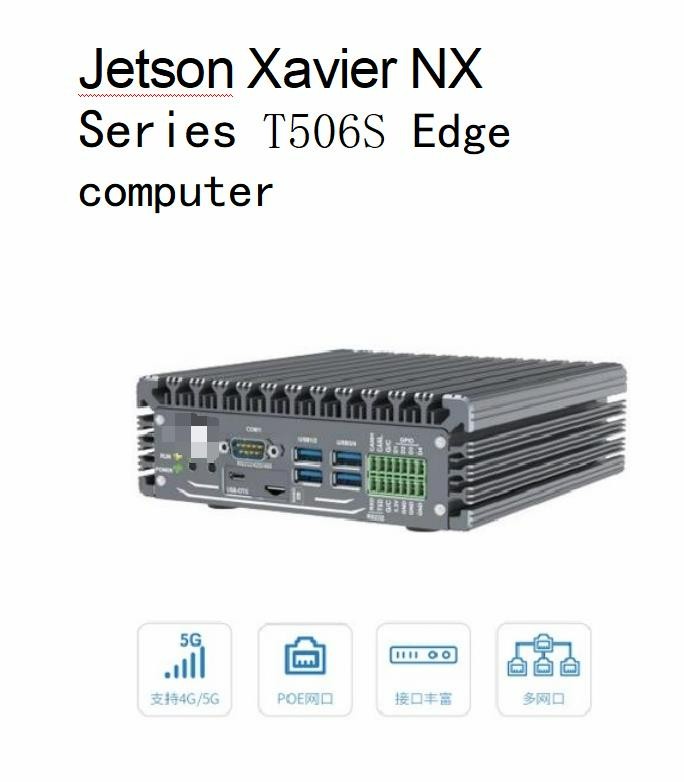

NVIDIA Jetson Xavier NX Series T506S Edge computer

systems

Al Platform

Jetson Xavier NX

AI computing power

21 TOPS

GPU

384-core NVIDIA Voltaarchitecture GPU with 48 Tensor Cores

CPU

6-core NVIDIA Carmel Arm®V8.264-bit CPU 6MB L2+4MB L3

video encoding

2x4K60(H.265)4x4K30(H.265)

10x1080p60(H.265)22×1080p30(H.265)

video decoding

2x8K30(H.265)6x4K60(H.265)

12x4K30(H.265)22x1080p60(H.265)44x1080p30(H.265)

RAM

8GB 128-bit LPDDR4/16 GB 128-bit LPDDR459.7GB/秒

Storage/Expansion

16GB eMMC5.1

wired network

Interface

5 x RJ45 Gigabit Ethernet ports. Lan1 has an independent IP address, and Lan2-Lan4 share an IP address and support POE (at standard).

wireless network

WIFI

2.4GHz/5GHz dual-band WiFi (optional)

4G/5G

4G full-network communication/5G full-network communication (optional)

GNSS

Supports multi-mode (BeiDou, GPS), and supports meter-level/centimeter-level/RTK/inertial navigation (optional) (For the RTK function, an RTK antenna needs to be selected).

Others

1x SIM CARD

multimedia

demonstrate

1xHDMI

audio frequency

/

I/O

USB

4xUSB3.0 Type-A,1xUSB2.0 Micro OTG

serial port

1xRS232,1xRS232/RS485

CAN

lx CAN,1xSPI-CAN(optional)

Multi-function interface

4xGPIO(3.3V@1mA)1xl2C(3.3V)

Interface

M.2 KEY E

/

M.2 KEY M

1x2280 PCIE SSD(optional)

Others

RTC

1xRTC

synchronization system

/

G MSL Camera Interface

/

Others

Power Input

Input voltage: 12-24V, supporting backup power supply (optional)

Power connector

MX3.0 terminal

Buttons/Indicators

Recover\Rest Two buttons and two indicator lights

physical parameter

Specification/Size

165mm×163.3mm×53mm

setting

operating temperature

-20℃ to 60℃

Operating humidity

5%~95%,without condensation

Heat dissipation method

Passive heat dissipation
