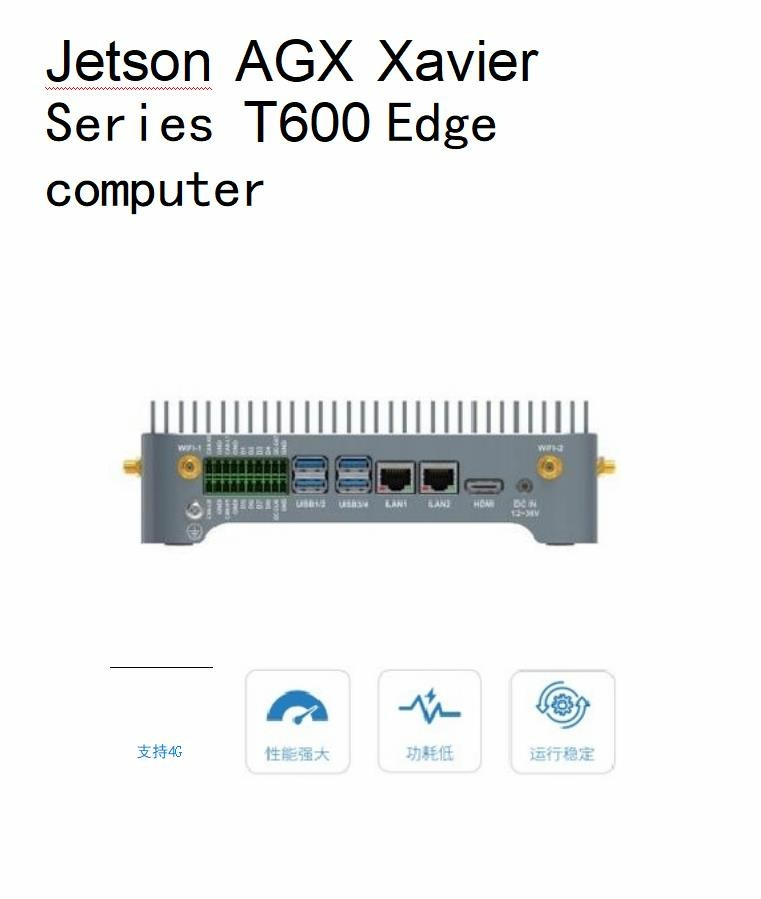

NVIDIA Jetson AGX Xavier Series T600 Edge computer

systems

Al Platform

Jetson AGXXavier

AI computing power

32TOPS

GPU

512-core NVIDIA Volta architecture GPU with 64 Tensor Cores

CPU

8-core NVIDIA Carmel Arm®V8.264-bit CPU 8MBL2+4MB L3

video encoding

4x4K60(H.265)8x4K30(H.265)

16x1080p60(H.265)32x1080p30(H.265)

video decoding

2x8K30(H.265)6x4K60(H.265)

12x4K30(H.265)26x1080p60(H.265)52x1080p30(H.265)

RAM

32GB 256-bit LPDDR4x136.5GB/s

Storage/Expansion

32GB eMMC5.1

wired network

Interface

2 x RJ45 Gigabit Ethernet ports

wireless network

WIFI

2.4GHz/5GHz dual-band WiFi (optional)

4G/5G

4G full-network communication (optional)

GNSS

/

Others

1x SIM CARD

multimedia

demonstrate

1xHDMI

audio frequency

1XAUDIO OUT(3.5mmInterface)

I/O

USB

4x USB3.0 Type-A,1xUSB2.0 Type-C port for flashing，1xUSB2.0 Type-C Debug

serial port

1xRS232,1xRS485/RS422

CAN

2xCAN

Multi-function interface

8xGPIO((3.3V@1mA)1x12C(3.3V)

Interface

M.2 KEY E

WiFi

M.2 KEY M

1x2280 PCIE SSD(optional)

Others

RTC

1xRTC

synchronization system

/

G MSL Camera Interface

/

Others

Power Input

12-36V

Power connector

DC Interface

Buttons/Indicators

Three buttons and three indicator lights

physical parameter

Specification/Size

197mm×197mm×64.5mm

setting

operating temperature

-20℃ TO 50℃

Operating humidity

5%~95%,without condensation

Heat dissipation method

Passive heat dissipation
