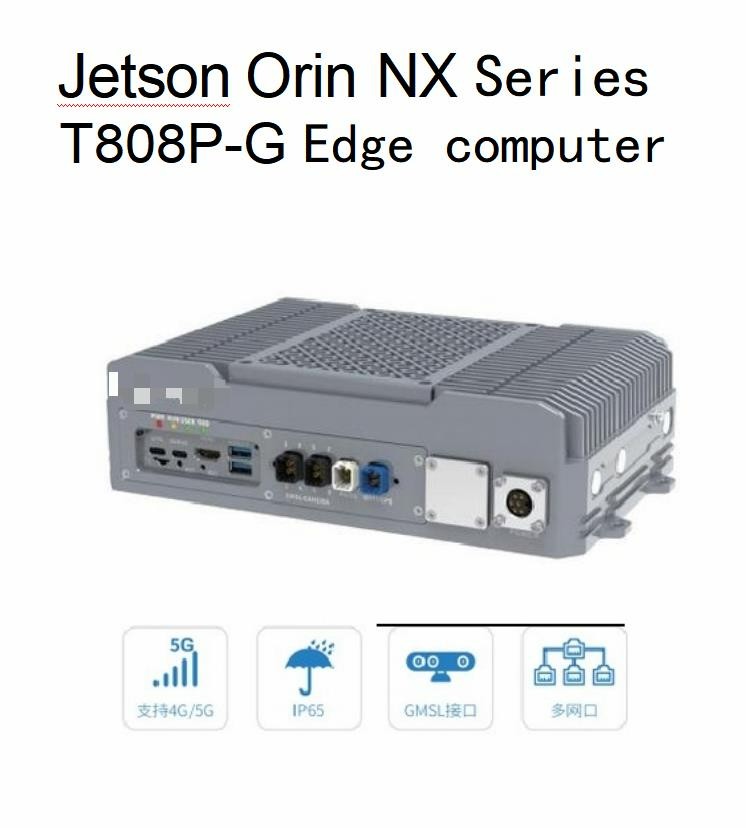

NVIDIA Jetson Orin NX Series T808P-G Edge computer

systems

Al Platform

Jetson Orin NX

AI computing power

70 TOPS/100 TOPS(Super mode：117TOPS/157TOPS)

GPU

1024-Core NVIDIAAmpere architecture GPU with 32 Tensor Core

CPU

6-core Arm Cortex®-A78AE v8.264-bit CPU1.5MB L2+4MB L3/ 8-core ArmCortex®-A78AE v8.264-bitCPU 2MB L2+4MB L3

video encoding

1x4K60(H.265)3x4K30(H.265)

6x1080p60(H.265)12x1080p30(H.265)

video decoding

1x8K30(H.265)2x4K60(H.265)

4x4K30(H.265)9x1080p60(H.265)18x1080p30(H.265)

RAM

8GB 128-bit LPDDR5102.4GB/s/16GB 128-bit LPDDR5102.4GB/s

Storage/Expansion

(Supports external NVMe)

wired network

Interface

 1 x M12 Gigabit Ethernet port (with independent IP), 4 x M12 Gigabit Ethernet ports (sharing IP), supporting POE (at standard) (standard configuration)

wireless network

WIFI

Dual-band 2.4GHz/5GHz Wi-Fi(optional)

4G/5G

4G All-network Compatibility / 5G All-network Compatibility(optional)

GNSS

Supports multi-mode (BD, GPS), and supports meter-level/centimeter-level/RTK/inertial navigation (optional)

Others

1x SIM card

multimedia

demonstrate

1xHDMI

audio frequency

/

I/O

USB

2xUSB3.0 Type-A,1xType-C OTG,1xType-C Debug

serial port

lxRS232,2xRS485

CAN

1x CAN-FD,1xSPI-CAN-FD

Multi-function interface

 2GPI + 2GPO (3.3V@1mA, isolated), 2GPI + 2GPO (12V@1mA, isolated)
M.2 KEY E: For Wi-Fi

Interface

M.2 KEY E

WiFi

M.2 KEY M

1x2280 PCIE SSD

Others

RTC

1x RTC

synchronization system

Supports PTP, PPS output/input, and PWM output (optional)

GMSL Camera Interface

8x GMSL2

Others

Power Input

9-36V, supporting ACC

Power connector

M16-6PIN navigation mark interface

Buttons/Indicators

Recover\Rest Two buttons and four indicator lights

physical parameter

Specification/Size

295mm×207.1mm×76.5mm

setting

operating temperature

 -20℃ to 60℃ (standard configuration) / -40℃ to 70℃ (optional) [Super mode, -20℃ to 50℃ (standard configuration) / -40℃ to 60℃ (optional)]

Operating humidity

5%~95%,without condensation

Heat dissipation method

 Cooled by a fan
