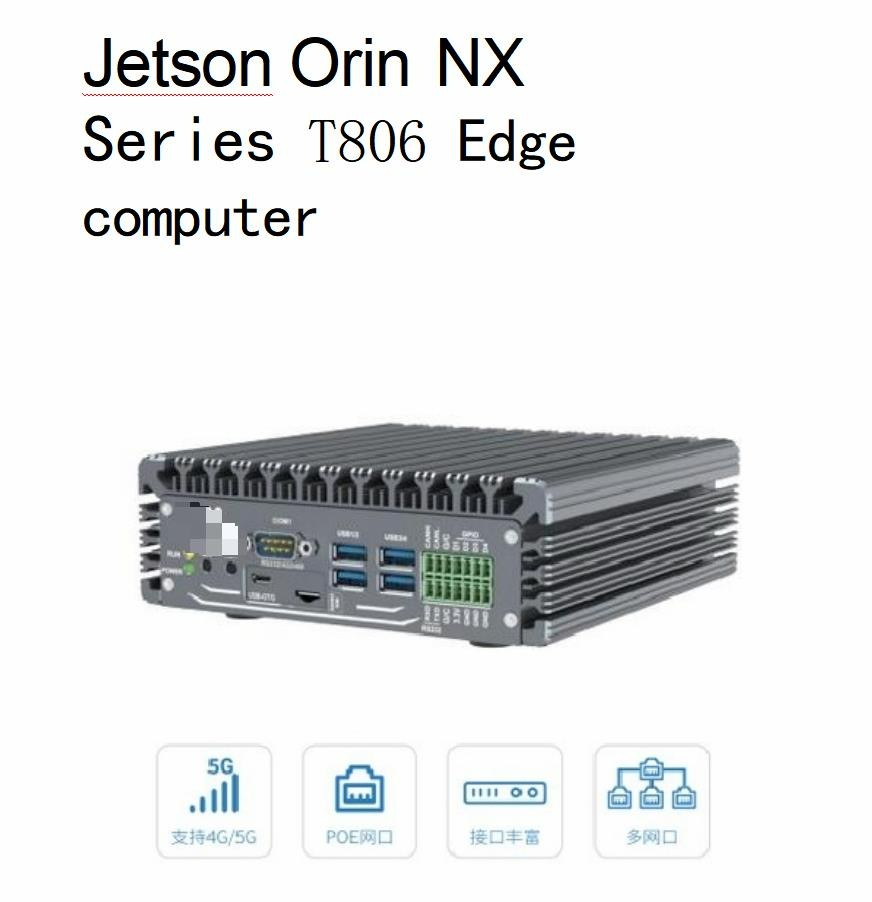

NVIDIA Jetson Orin NX Series T806 Edge computer

systems

Al Platform

Jetson Orin NX

AI computing power

70 TOPS/100 TOPS(Super mode：117TOPS/157TOPS)

GPU

1024-Core NVIDIAAmpere architecture GPU with 32 Tensor Core

CPU

6-core ArmCortex-A78AE v8.264-bit CPU1.5MB L2+4MB L3/ 8-core ArmCortex-A78AE V8.264-bit CPU 2MB L2+4MB L3

video encoding

1x4K60(H.265)3x4K30(H.265)

6x1080p60(H.265)12x1080p30(H.265)

video decoding

1x8K30(H.265)2x4K60(H.265)

4x4K30(H.265)9×1080p60(H.265)18x1080p30(H.265)

RAM

8GB 128-bit LPDDR5102.4GB/s/16GB 128-bit LPDDR5102.4GB/s

Storage/Expansion

(Supports external NVMe)

wired network

Interface

 5 x RJ45 Gigabit Ethernet ports. Lan1 has an independent IP, and Lan2-Lan4 share an IP and support POE (at standard)

wireless network

WIFI

2.4GHz/5 - GHz dual - band WiFi(optional)

4G/5G

4G all-network compatibility / 5G all-network compatibility (optional)

GNSS

Supports multi-mode (BD, GPS), and supports meter-level/centimeter-level/RTK/inertial navigation (optional). (To use the RTK function, an RTK antenna needs to be selected.)

Others

1xSIM card

multimedia

demonstrate

1xHDMI

audio frequency

/

I/O

USB

4x USB3.0 Type-A,1xUSB2.0 Micro OTG

serial port

lxRS232,1xRS232/RS485

CAN

lxCAN,lxSPI-CAN(optional)

Multi-function interface

4xGPIO(3.3V@1mA)1xl2C(3.3V)

Interface

M.2 KEY E

/

M.2 KEY M

1x2280 PCIE SSD

Others

RTC

1xRTC

synchronization system

/

GMSL Camera Interface

/

Others

Power Input

12-24V,supporting a backup power supply (optional)

Power connector

MX3.0 terminal

Buttons/Indicators

Recover\Rest ( Two buttons and two indicator lights )

physical parameter

Specification/Size

165mm×163.3mm×53mm

setting

operating temperature

-20℃至60℃  (In Super mode: -20℃ to 50℃)

Operating humidity

5%~95%,without condensation

Heat dissipation method

Passive heat dissipation
