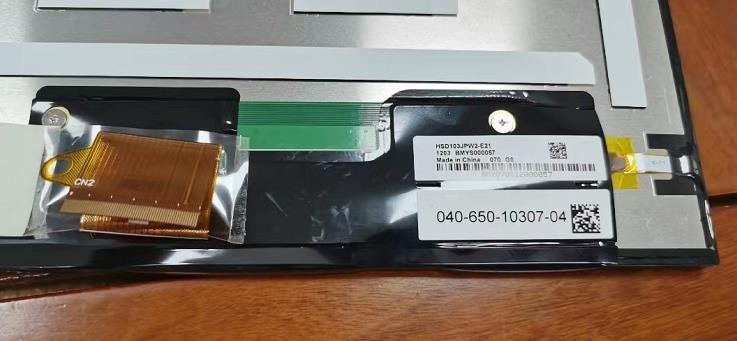

Brand new stock Hannstar 10.3 inch high brightness car mounted TFT-LCD panel HSD103JPW2-E21

Panel brand HannStar Panel model HSD103JPW2-E21

Panel size 10.3 inches Panel type a-Si TFT-LCD, LCD module

Resolution 1920 (RGB) × 720, 200PPI pixel layout RGB vertical stripe

Display area 243.648 (W) × 91.368 (H) mm Appearance size 260 (W) × 110 (H) × 10.6 (D) mm

Visible area 246.7 (W) × 94.4 (H) mm surface treatment Hard coating (3H)

Panel brightness 1385 cd/m ²  (Typ.) Contrast 1000:1 (Min.) (TM)

Visual angle 85/85/85/85 (Typ.) (CR ≥ 10) Left/Right/Up/Down working mode IPS Pro, always black display, transparent [screen library copyright, strictly prohibited plagiarism]<br/>IPS hard screen series: AAS, ADS, AHVA, FFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich<br/>VA soft screen series: ASV, FSA, HVA, MVA, PVA, SVA, UV ² A. VA

Best Perspective Full View Response Time 25 (Max.) (Tr+Td) ms

Display color 16.7M, 89% NTSC light source type 4 strings WLED, 20K hours, without driver

Working frequency 60Hz [screen library copyright, plagiarism prohibited]<br/>120Hz (60Hz input): built-in MEMC circuit<br/>120Hz+120Hz: 120Hz panel+120Hz backlight<br/>240Hz (60Hz input): built-in MEMC circuit touch screen without touch

Panel weight 281g (Typ.) Panel application outdoor highlighted car display

Signal interface LVDS (2 ch, 8-bit), 60 pins, FPC

Drive screen voltage 3.3V (Typ.)

Working environment: -40~85 ° C; Storage: -40~95 ° C; Vibration resistance: 2.9G (28.4 m/s ²)
