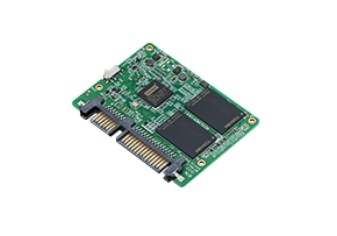

Innodisk SATA Slim 3TE7 32G-2TB
SATA Slim SATA III solution for industrial field
High IOPS
iSMART disk health monitoring
iPower Guard for protecting unstable start up and shut down
iData Guard for abnormal power failure
| Module Name | SATA Slim 3TE7 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | 3D TLC |
| Capacity | 32GB~2TB |
| Sequential R/W (MB/sec, max.) | 550/510 |
| Max. Power Consumption | 3.8 W |
| Max. Channels | 4 |
| Thermal Sensor | Y |
| ATA Security | Y |
| H/W Write Protect | Optional |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 54.0 x 39.0 x 4.0 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -40°C ~ +85°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
