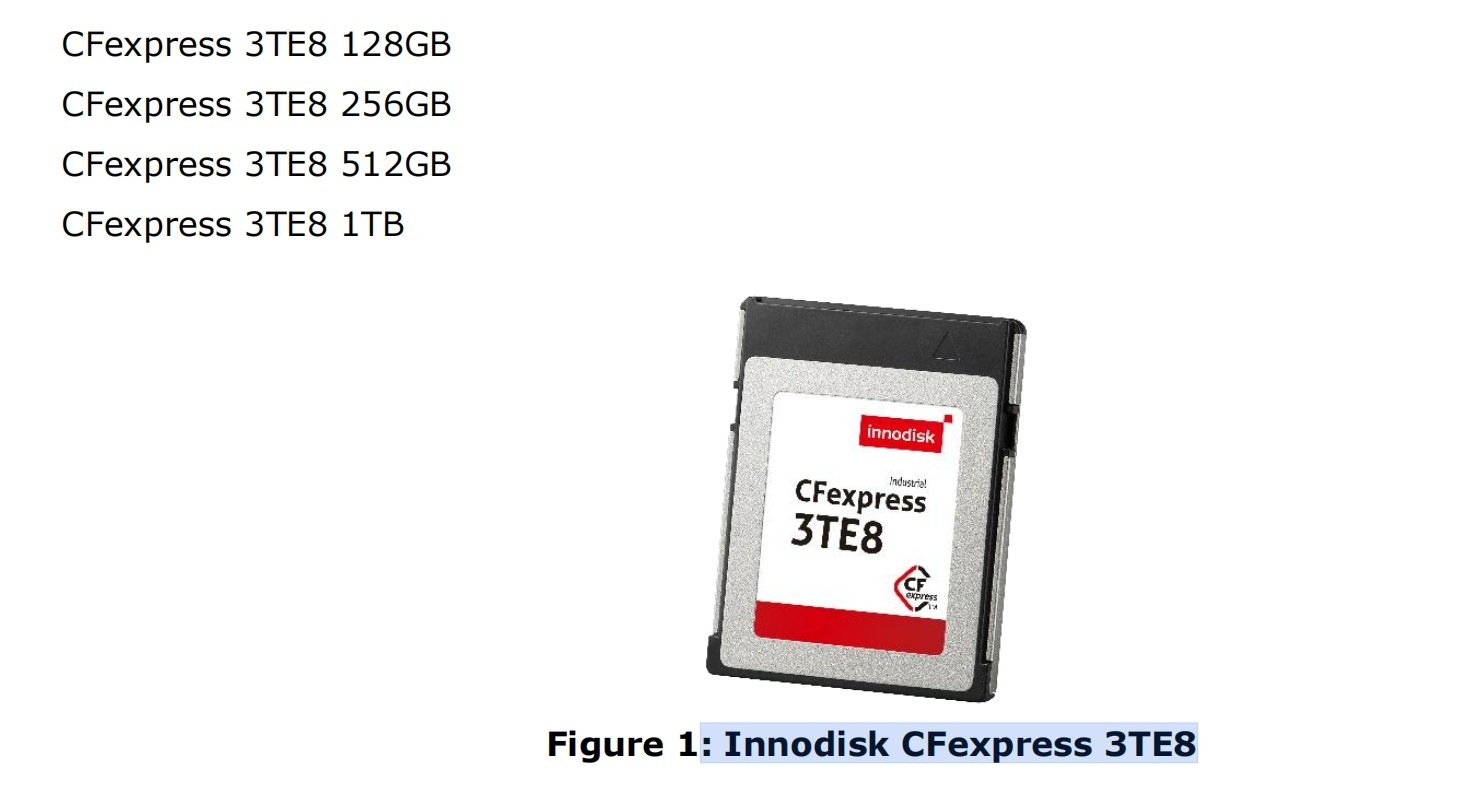

Innodisk CFexpress 3TE8 pcie cf card

2. Product Specifications

2.1 Capacity and Device Parameters

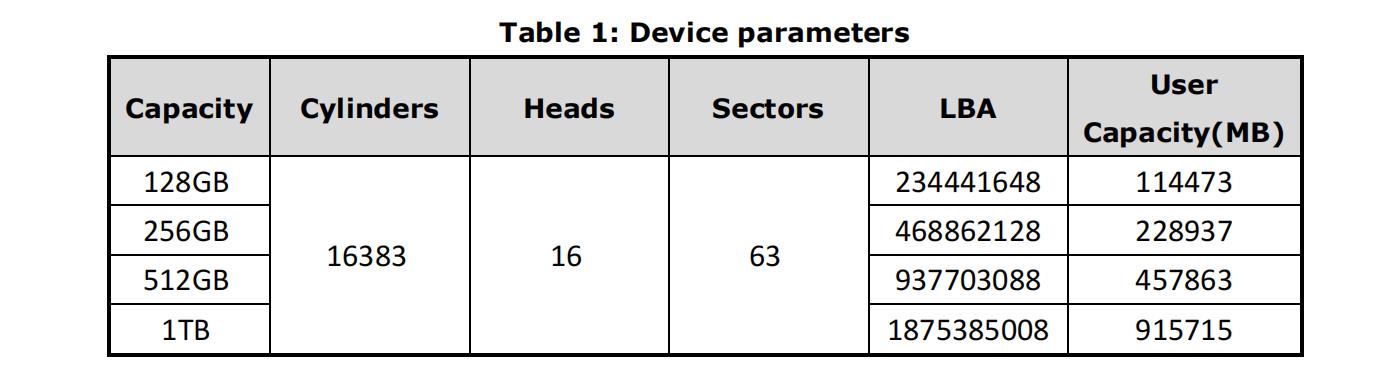

CFexpress 3TE8 device parameters are shown in Table 1.

2.2 Performance

Burst Transfer Rate: 4 GB/s

Table 2: Performance- 112 Layers 3D TLC

Note: * Performance results are 3TE8 with Kioxia BiCS5 NAND composition measured in Room Temperature with Out-of-Box devices and may vary depending on overall system setup. In addition, 3TE8 series adopt hybrid mode which enables SLC cache followed by TLC direct write to strike balance between burst performance and steady overall stability.

Note: ** Performance results are based on CrystalDiskMark 8.0.1 with file size 1000MB. Unit of 4KB item is IOPS.

Note: *** Performance results are based on AIDA 64 v5.98 with block size 1MB of Linear Read & Write Test Item.

2.3 Electrical Specifications

2.3.1 Power Requirement

Table 3: Innodisk CFexpress 3TE8 Power Requirement

2.3.2 Power Consumption

Table 4: Power Consumption

Target: CFexpress 3TE8 1TB

Note: Current results may vary depending on system components and power circuit design. Please refer to the test report for other capacities.

2.4 Environmental Specifications

2.4.1 Temperature Ranges

Table 5: Temperature range for CFexpress 3TE8

2.4.2 Humidity

Relative Humidity: 10-95%, non-condensing

2.4.3 Shock and Vibration

Table 6: Shock/Vibration Testing for CFexpress 3TE8

2.4.4 Mean Time between Failures (MTBF)

Table 7 summarizes the MTBF prediction results for various CFexpress 3TE8 configurations. The analysis was performed using a RAM Commander™  failure rate <span style="font-famil
