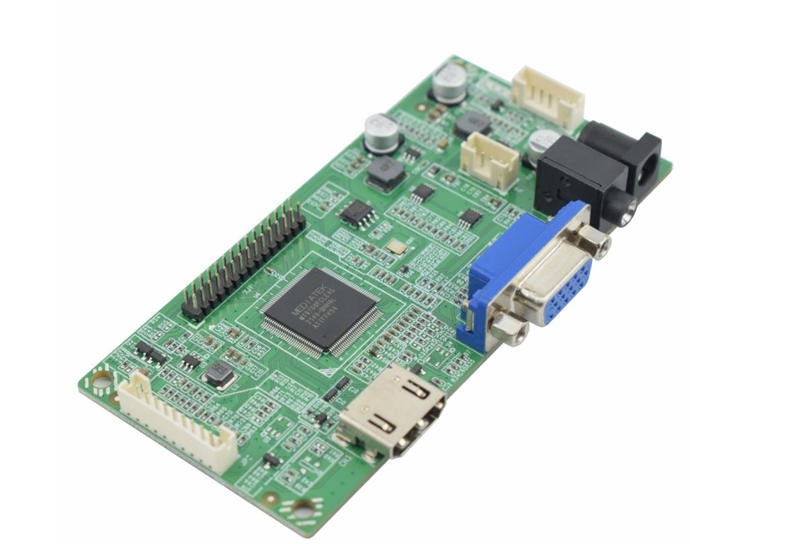

ZY-M97AN01 V1.0 LCD Driver Board Main Control Uses MTK's Latest Display Driver Control Chip

The MT9700FCLEAG supports up to 2-channel LVDS FHD@90Hz for LCD screen display. support

HDR, OD, and FREE SYNC features, supporting HDMI 2.0 1080P@60Hz 8/10/12-bit color depth

Serial input, 32-stage DLC control, supports green DPMS, low chip operating temperature, suitable for harsh environments

For use in working environments. Equipped with an onboard amplifier circuit, supporting 2x3W (4Ω) speakers.

2. Product Features

main chip

MT9700FCLEAG

Input resolution: Maximum support 1080P @60Hz, HDMI 2.0 8/10/12bit

output resolution

color

Supported voltage

Operating Temperature

input

Screen voltage

LVDS output

Backlight support

OSD Menu

audio output

Maximum support 1920x1080 (WUXGA) @90Hz

24-bit/30-bit True Color Processing

DC +12V input, -10°C to 70°C

HDMI, VGA analog audio input

+3.3V/+5.0V/+12V

LVDS Dual 8-bit (Dual-row 2.0mm Pitch, 2x15 Pins)

PWM dimming/AD dimming (optional)

Supports multilingual OSD menu operations and OSD menu adjustments

Supports 2x3W (4Ω) amplifier output
