LEX 2I130HW Single Board Computer

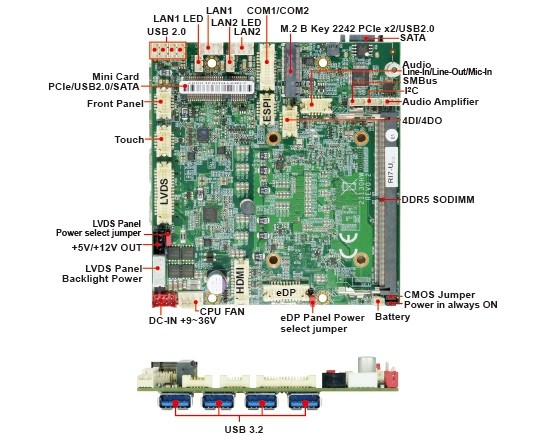

LEX SYSTEM 2I130HW is the 2.5" Plus SBC with Intel® 13th Gen Raptor Lake-P / U & 12th Gen Alder Lake-P / U  i7/i5/i3/Celeron processor designed for high performance Edge Computing and AI computing. The 2I130HW combines Intel's new graphics architecture and up to 32GB DDR5 memory to ensure improved graphics performance. The 2I130HW also provides high-speed 2 x 2.5 GbE LAN ports, wide range 9~36VDC input , HDMI, eDP, LVDS display, touch screen controller & HD Audio,  4 x USB 3.0 (Type A), 4 x USB 2.0 , 2 x serial ports , 1 x Mini PCIe slot, 1x M.2 B -key supports NVMe with high flexible expansion via wafer type I/Os and also provides user hassle-free solution of integrating the SBC board within various mechanical enclosures.

• Intel® 13th Gen Raptor Lake-P / U
  Intel® 12th Gen Alder Lake-P / U i7 / i5 / i3 CPU

• 1 x DDR5 SODIMM (Max. 32GB)

• Multiple Independent display: HDMI, eDP, LVDS

• 2 x Intel 2.5 GbE LAN, 4 x USB 3.0 (type A), 4 x USB 2.0

• 2 x COM, 4DI / 4DO, HD Audio

• 1 x Mini PCIe, 1 x M.2 B Key

• TPM 2.0
