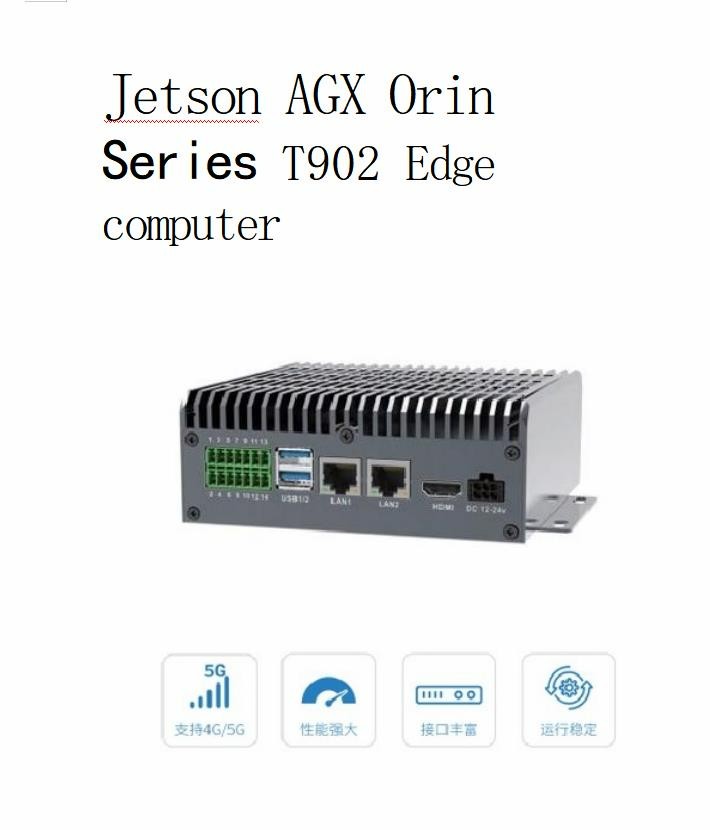

NVIDIA Jetson AGX Orin Series T902 Edge computer

systems

Al Platform

Jetson AGX Orin

AI computing power

200 TOPS/275 TOPS

GPU

1792-core NVIDIAAmpere architecture GPU with 56 Tensor Cores/ 2048-core NVIDIAAmpere architecture GPU with 64 Tensor Cores

CPU

8-core ArmCortex-A78AE v8.264-bit CPU 2MB L2+4MB L3/

12-core Arm Cortex®-A78AE v8.264-bit CPU3MB L2+6MB L3

video encoding

1x4K60(H.265)3x4K30(H.265)6x1080p60(H.265)12x1080p30(H.265)/ 2x4K60(H.265)4x4K30(H.265)8x1080p60(H.265)16x1080p30(H.265)

video decoding

1x8K30(H.265)2x4K60(H.265)4x4K30(H.265)9x1080p60(H.265)18x1080p30(H.265)/ 1x8K30(H.265)3x4K60(H.265)7x4K30(H.265)11x1080p60(H.265)22x1080p30(H.265)

RAM

32GB 256-bit LPDDR5204.8GB/s/64GB256-bit LPDDR5204.8GB/s

Storage/Expansion

64GB eMMC5.1

wired network

interface

1 x RJ45 10 Gigabit Ethernet port, 1 x RJ45 Gigabit Ethernet port, with independent IP.

wireless network

WIFI

Dual-band 2.4GHz/5GHz Wi-Fi (optional)

4G/5G

4G/5G universal network connectivity (optional)

GNSS

/

Others

1xSIM卡

multimedia

demonstrate

1xHDMI

audio frequency

/

1/0

USB

2x USB3.0 Type-A

serial port

1xRS232,1xRS485

CAN

2xCAN

Multi-function interface

2xGPIO(IN/OUT)(3.3V@1mA)

interface

M.2 KEY E

WiFI

M.2 KEY M

1x2280 PCIE SSD

Others

RTC

lx RTC

synchronization system

/

GMSL Camera Interface

/

Others

Power Input

12V-24V

Power connector

MX3.0 terminal

Buttons/Indicators

Recover\Rest Two buttons (Recover, Rest) and two indicator lights

physical parameter

Specification/Size

133mm×131mm×51mm

setting

operating temperature

-20℃至60℃

Operating humidity

5%~95%,without condensation

Heat dissipation method

Cooled by a fan
