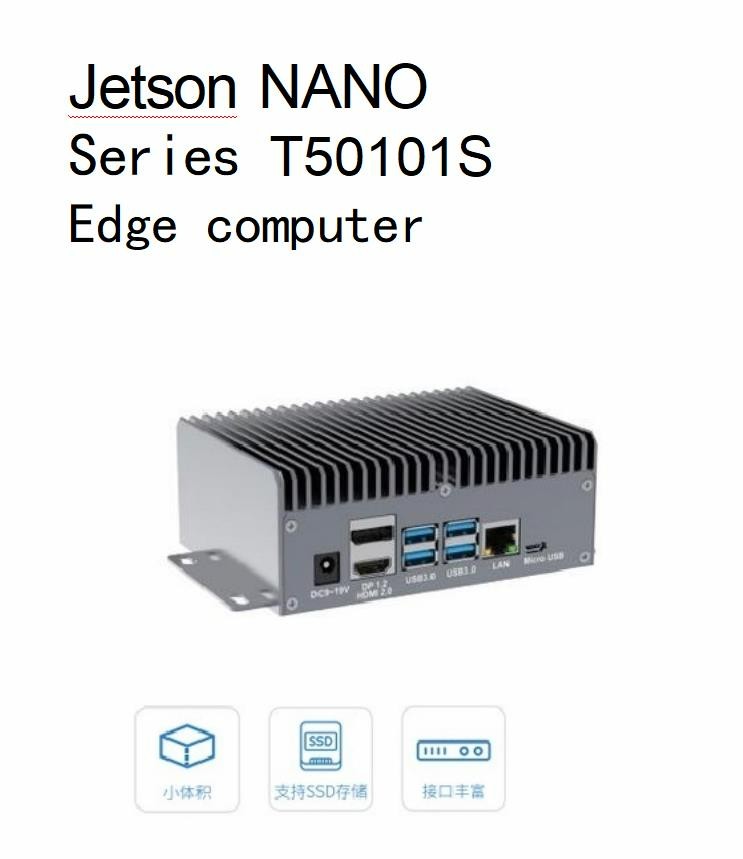

NVIDIA Jetson NANO Series T50101S Edge computer
Technical Parameters | ||
systems | Al Platform | Jetson NANO |
AI computing power | 472 GFLOPS | |
GPU | 128-core NVIDIA MaxwellT architecture GPU | |
CPU | Quad-core ARM®Cortex-A57 MPCore processor | |
video encoding | 1x4K30(H.265) 2x1080p60(H.265) | |
video decoding | 1x4K60(H.265) 4x1080p60(H.265) | |
RAM | 4GB64-bit LPDDR425.6GB/s | |
Storage/Expansion | 16GB eMMC5.1 | |
hardware interface | ||
wired network | Interface | 1 x RJ45 Gigabit Ethernet port |
wireless network | WIFI | 2.4GHz/5GHz dual-band WiFi (optional) |
4G/5G | / | |
GNSS | / | |
Others | 1x TF Card | |
multimedia | demonstrate | 1xHDMI,1xDP |
audio frequency | / | |
1/O | USB | 4xUSB3.0 Type-A,1xUSB Micro OTG |
serial port | 1xUART(TTL) | |
CAN | / | |
Multi-function interface | 40 Pin(UART、SPI、12S、I2C、PWM、GPIO),12-pin control signal interface | |
Interface | M.2 KEY E | WiFi |
M.2 KEY M | 1x2280 PCIE SSD(optional) | |
Others | RTC | / |
synchronization system | / | |
GMSL Camera Interface | / | |
Others | Power Input | 9-19V |
Power connector | DC Interface | |
Buttons/Indicators | / | |
physical parameter | Specification/Size | 122mm×89mm×44.8mm |
setting | operating temperature | -20℃ TO 60℃ |
Operating humidity | 5%~95%,without condensation | |
Heat dissipation method | Passive heat dissipation | |
