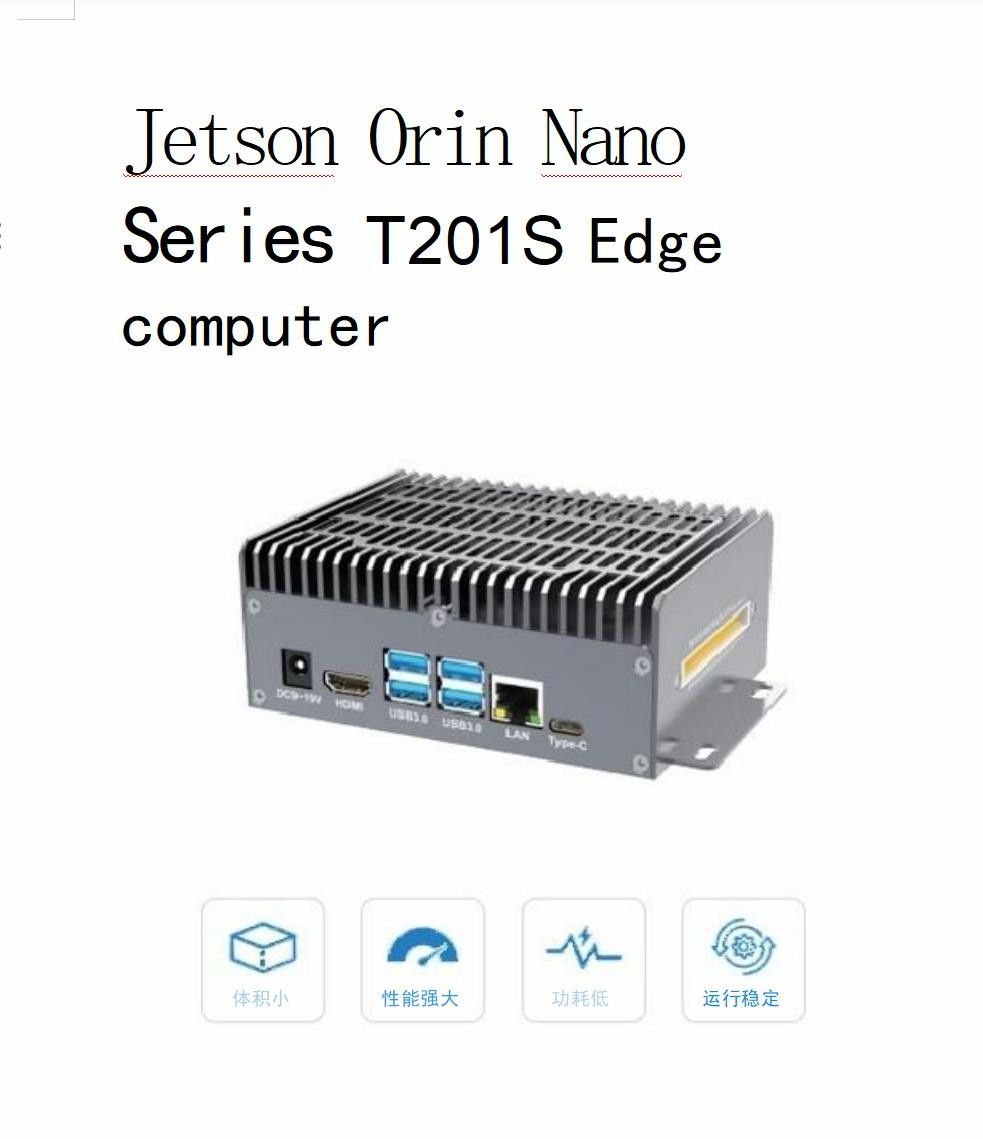

NVIDIA Jetson Orin Nano Series T201S Edge computer

systems

Al Platform

Jetson Orin Nano

AI computing power

20 TOPS/40 TOPS (Super mode：34TOPS/67TOPS)

GPU

512-core NVIDIAAmpere architecture GPU with 16 Tensor Cores/ 1024-core NVIDIAAmpere architecture GPU with 32 Tensor Cores

CPU

6-core ArmCortex-A78AE v8.264-bit CPU 1.5MB L2+4MB L3

video encoding

1080p30 supported by 1-2CPU cores

video decoding

1x4K60(H.265)2x4K30(H.265)

5x1080p60(H.265)11x1080p30(H.265)

RAM

4GB64-bit LPDDR534 GB/s 8GB 128-bit LPDDR568 GB/s

Storage/Expansion

(Supports external NVMe)

wired network

Interface

1 x RJ45 Gigabit Ethernet port

wireless network

WIFI

2.4GHz/5GHz双频WiFi(optional)

4G/5G

/

GNSS

/

Others

/

multimedia

demonstrate

1xHDMI

audio frequency

/

I/O

USB

4x USB3.2 Type-A,1xUSB3.2 Type-C

serial port

1xUART(TTL)

CAN

/

Multi-function interface

40 pins (UART, SPI, I²S, I2C, PWM, GPIO), a 12-pin control signal interface, and a 4-pin fan interface

Interface

M.2 KEY E

WiFi

M.2 KEY M

1x2280 PCIE SSD

Others

RTC

/

synchronization system

/

G MSL Camera Interface

/

Others

Power Input

9-19V

Power connector

DC Interface

Buttons/Indicators

/

physical parameter

Specification/Size

131mm×100mm×52mm

setting

operating temperature

-20℃ to 60℃

Operating humidity

5%~95%,without condensation

Heat dissipation method

Cooling by a fan
