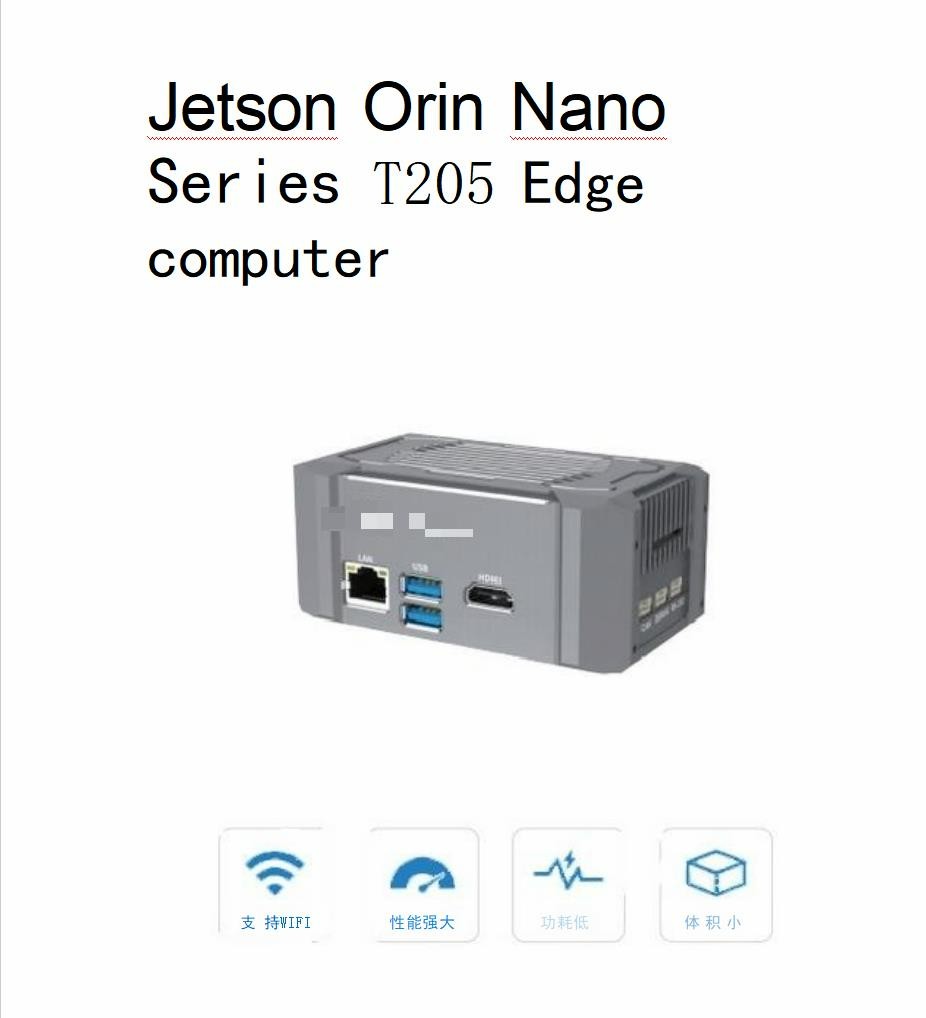

NVIDIA Jetson Orin Nano Series T205 Edge computer

systems

Al Platform

Jetson Orin Nano

AI computing power

20 TOPS/40 TOPS

GPU

512-core NVIDIAAmpere architecture GPU with 16 Tensor Cores/ 1024-core NVIDIAAmpere architecture GPU with 32 Tensor Cores

CPU

6-core ArmCortex®-A78AE v8.264-bit CPU 1.5MB L2+4MB L3

video encoding

1080p30 supported by 1-2 CPU cores

video decoding

1x4K60(H.265)2x4K30(H.265)

5×1080p60(H.265)11x1080p30(H.265)

RAM

4GB64-bit LPDDR534 GB/s 8GB 128-bit LPDDR568 GB/s

Storage/Expansion

(Supports external NVMe)

wired network

Interface

1 x RJ45 Gigabit Ethernet port

wireless network

WIFI

2.4GHz/5GHz dual-band WiFi (optional)

4G/5G

4G full-network communication (optional)

GNSS

/

Others

/

multimedia

demonstrate

1xHDMI

audio frequency

/

1/0

USB

2xUSB3.0 Type-A,1xUSB2.0 Micro OTG

serial port

1xRS232

CAN

1xCAN

Multi-function interface

/

Interface

M.2 KEY E

WiFi

M.2 KEY M

1x2242 PCIE SSD

Others

RTC

1xRTC

synchronization system

/

G MSL Camera Interface

/

Others

Power Input

12-24V

Power connector

DCInterface

Buttons/Indicators

Recover\Rest\REC Three buttons and one indicator light

physical parameter

Specification/Size

109.2mm×62.5mm×46.3mm

setting

operating temperature

-20℃ to 50℃

Operating humidity

5%~95%,without condensation

Heat dissipation method

Cooling by a fan
