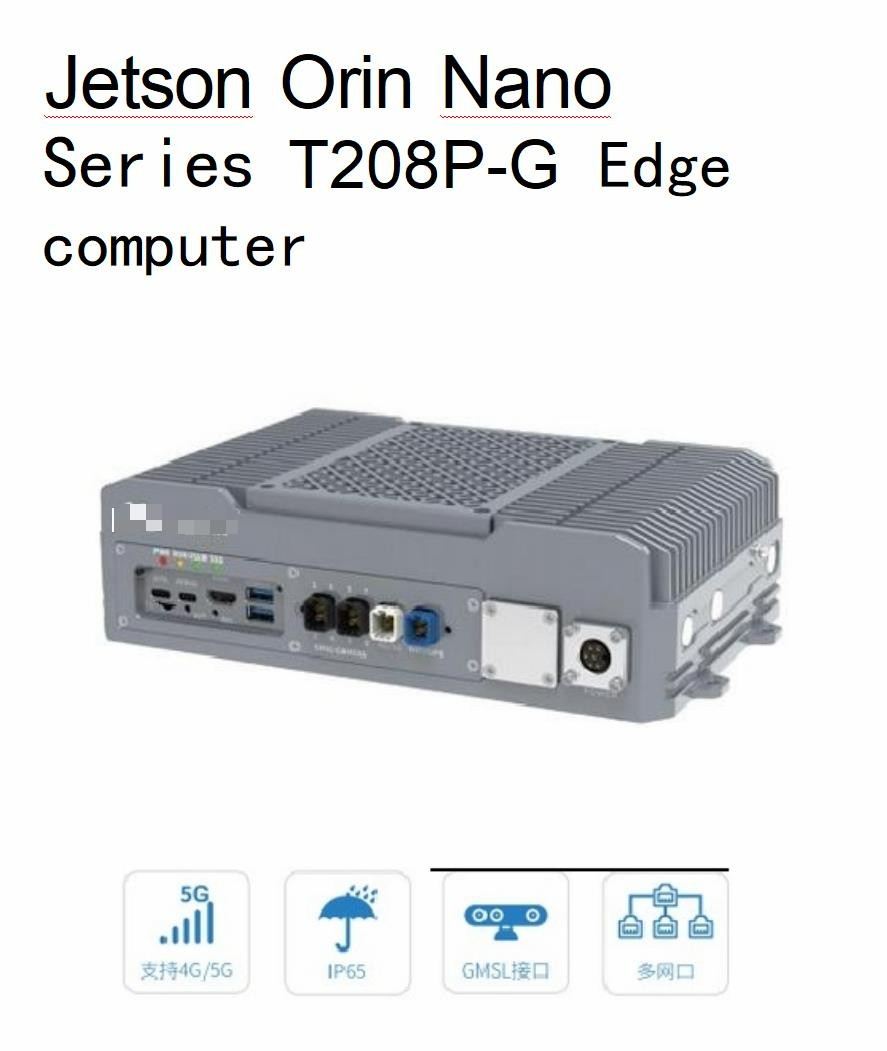

NVIDIA Jetson Orin Nano Series T208P-G Edge computer

systems

Al Platform

Jetson Orin Nano

AI computing power

20 TOPS/40 TOPS(Super Mode：34TOPS/67TOPS)

GPU

512-core NVIDIAAmpere architecture GPU with 16 Tensor Cores/ 1024-core NVIDIAAmpere architecture GPU with 32 Tensor Cores

CPU

6-core ArmCortex®-A78AE v8.264-bit CPU 1.5MB L2+4MB L3

video encoding

1080p30 supported by 1-2 CPU cores

video decoding

1x4K60(H.265)2x4K30(H.265)

5×1080p60(H.265)11x1080p30(H.265)

RAM

4GB64-bit LPDDR534 GB/s 8GB 128-bit LPDDR568 GB/s

Storage/Expansion

(Supports external NVMe)

wired network

Interface

1 x M12 Gigabit Ethernet port (with independent IP address), 4 x M12 Gigabit Ethernet ports (with shared IP address), supporting POE (at standard) (standard configuration)

wireless network

WIFI

2.4GHz/5GHz dual-band WiFi (optional)

4G/5G

4G full-network communication/5G full-network communication (optional)

GNSS

Supports multi-mode (BeiDou, GPS), and supports meter-level/centimeter-level/RTK/inertial navigation (optional)

Others

1xSIM Card

multimedia

demonstrate

1xHDMI

audio frequency

/

1/0

USB

2xUSB3.0 Type-A,1xType-COTG,1x Type-C Debug

serial port

1xRS232,2xRS485

CAN

1x CAN-FD,1x SPI-CAN-FD

Multi-function interface

2 * GPI + 2 * GPO (3.3V@1mA, isolated), 2 * GPI + 2 * GPO (12V@1mA, isolated)

Interface

M.2 KEY E

WiF

M.2 KEY M

1x2280 PCIE SSD

Others

RTC

1x RTC

synchronization system

Supports PTP, PPS output/input, and PWM output (optional)

G MSL Camera Interface

8x GMSL2

Others

Power Input

Input voltage range: 9-36V, supports ACC

Power connector

M16-6PIN navigation mark interface

Buttons/Indicators

Recover\Rest Two buttons and four indicator lights

physical parameter

Specification/Size

295mm×207.1mm×76.5mm

setting

operating temperature

-20℃至60℃ (standard configuration)/-40℃ to 70℃(optional)

Operating humidity

5%~95%,without condensation

Heat dissipation method

Cooling by a fan
